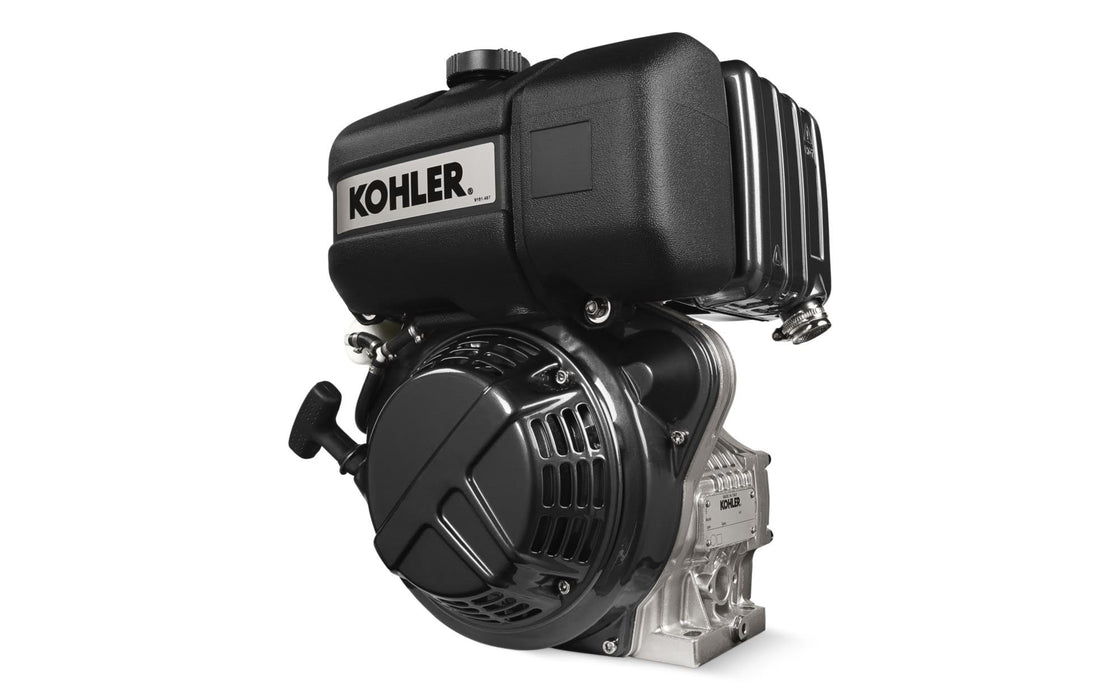

Kohler KD441 Diesel Engine
Specifications
ENGINE TYPE Single cylinder silent diesel engine
Forced air-cooled
Horizontal shaft
Over-head valves
MODEL KD15 441
MAX. POWER kW (hp) @ rpm 7.0 (9.4) @ 3600
MAXIMUM TORQUE Nm @ rpm 21.0 @ 2200
EMISSION COMPLIANCE No regulations
NUMBER OF CYLINDERS 1
BORE AND STROKE mm 86 x 76
DISPLACEMENT cm³ 441
FUEL TANK CAPACITY l 5
OIL SUMP CAPACITY l 1.5
LENGHT mm 412.8
WIDTH mm 340
HEIGHT mm 493.1
DRY WEIGHT kg 45
SPECIAL HIGHLIGHTS
• Aluminum crank case, hence lightweight
but powerful engine
• Cast iron liner separable for easy maintenance
• External spin-on oil filter for easy maintenance
• Forced lubrication for better engine life
• Closed breather system, so no wastage of Lube Oil
• Higher power to weight ratio which
makes the engine lightweight but still powerful
• Reduced vibrations due to balancer shaft for
driving comfort due to less vibration
• Dust-protection for fly-wheel mounted alternator
which leads to less maintenance cast
